Homecraft Revive Slim 6 kW Sauna Heater Bundle with WiFi
Product Overview
The Homecraft Revive Slim 6 kW Sauna Heater Bundle with WiFi is a space-saving electric sauna system designed for sauna rooms from 7.1–9.4 m³ (250–331 cu. ft.). Featuring a narrow tower-style design, 100% stainless steel construction, and a generous 45 kg (100 lb) stone capacity, the Revive Slim provides satisfying steam and consistent heat while taking up minimal space inside the sauna.

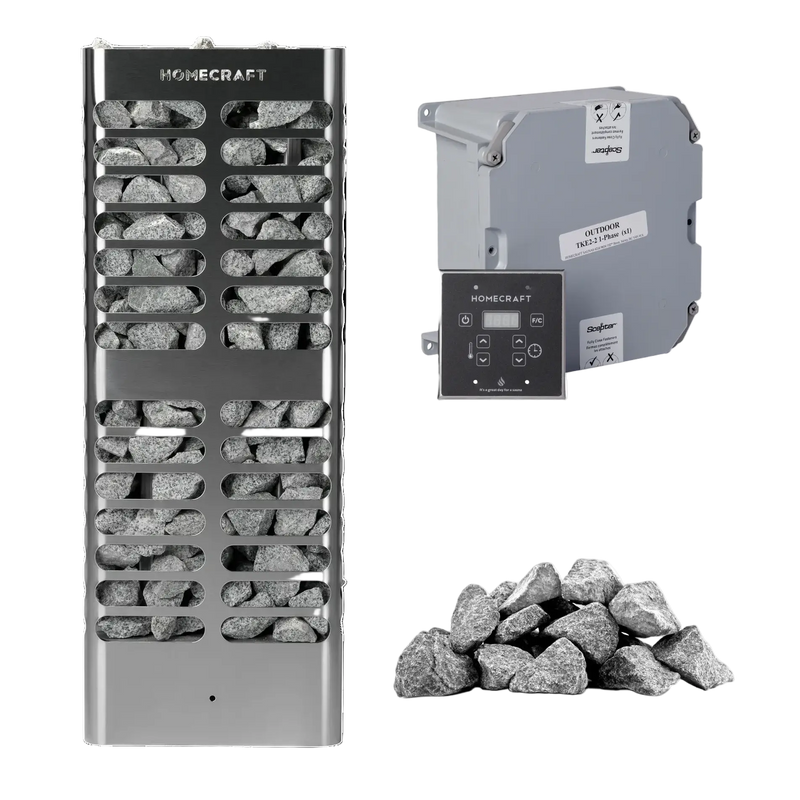

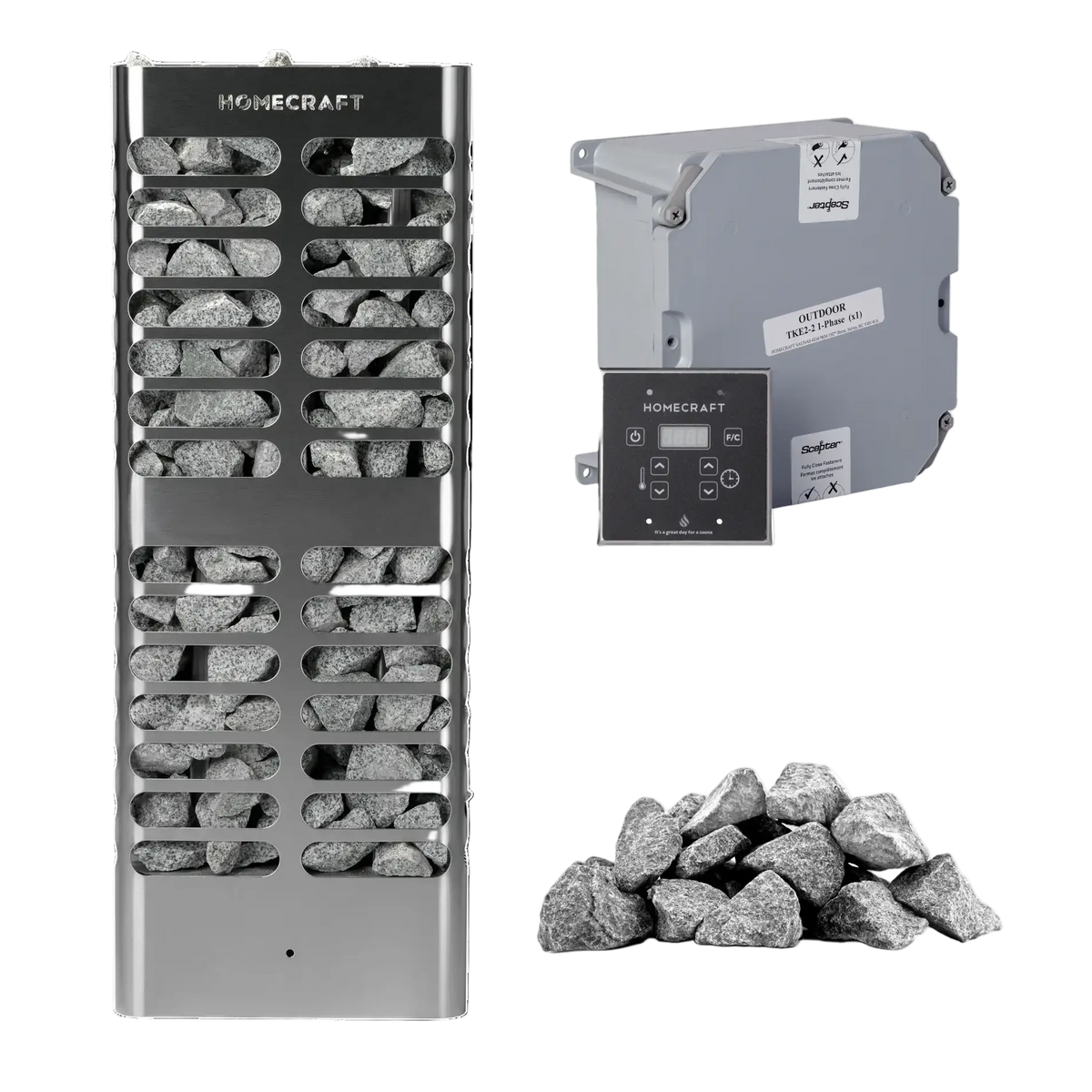

This complete bundle pairs the Canadian-made Revive Slim 6 kW heater with the Homecraft TKE2-2 Wi-Fi Control – Outdoor Setup, an included Homecraft heat shield, and 4 boxes of BCR Rounded Sauna Rocks. Its free-airflow design promotes even heating through the stone mass while helping protect the heating elements, while the included heat shield allows greater installation flexibility in compact sauna layouts. The outdoor-rated control enclosure also makes the system particularly well suited for outdoor sauna installations.
Key Features
- 6 kW Heating Power: Designed for sauna rooms from 7.1–9.4 m³ (250–331 cu. ft.), making it an excellent choice for compact to medium-sized residential sauna spaces.
- Space-Saving Slim Design: Measuring just 13.5 in wide × 8 in deep × 36 in high, the Revive Slim delivers strong sauna performance while preserving valuable space inside tighter sauna layouts.
- 100 lb Stone Capacity: Holds up to 45 kg (100 lbs) of sauna stones, providing substantial thermal mass for enjoyable löyly and greater flexibility when adding water to the stones.
- Full, Satisfying Löyly: The heated stone mass absorbs water and releases steam throughout the sauna, allowing you to increase humidity and customize the sauna experience to your preference.
- Free-Airflow Design: Engineered to promote efficient airflow through the stone chamber, helping heat the stones evenly while supporting consistent sauna temperatures.
- Protected Heating Elements: The airflow-focused internal design helps protect the heating elements while efficiently transferring heat into the surrounding stone mass.
- Heat Shield Included: Includes the Homecraft Heat Shield ($150 value) for added protection and greater installation flexibility in compact sauna rooms. When properly installed according to manufacturer requirements, the heat shield can reduce the required clearance to combustible materials.
- 100% Stainless Steel Construction: Built from durable stainless steel for excellent corrosion resistance and dependable long-term performance in hot, humid sauna environments.

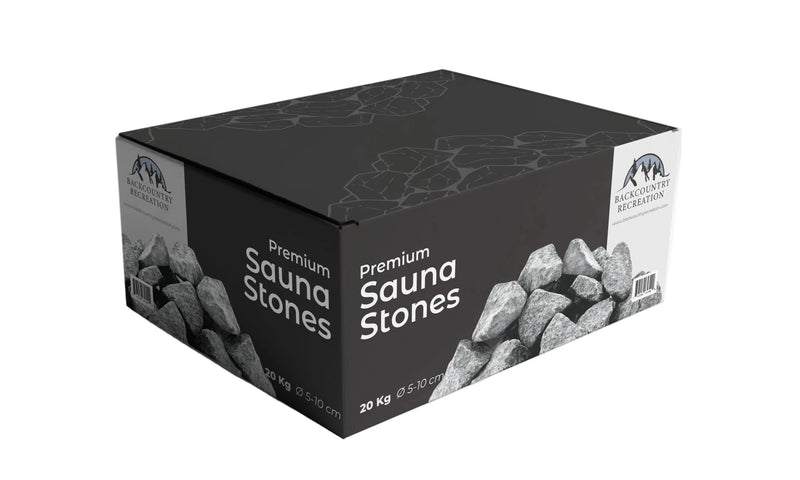

- Sauna Rocks Included: The bundle includes 4 boxes of BCR Rounded Sauna Rocks to accommodate the Revive Slim's high-capacity stone compartment.

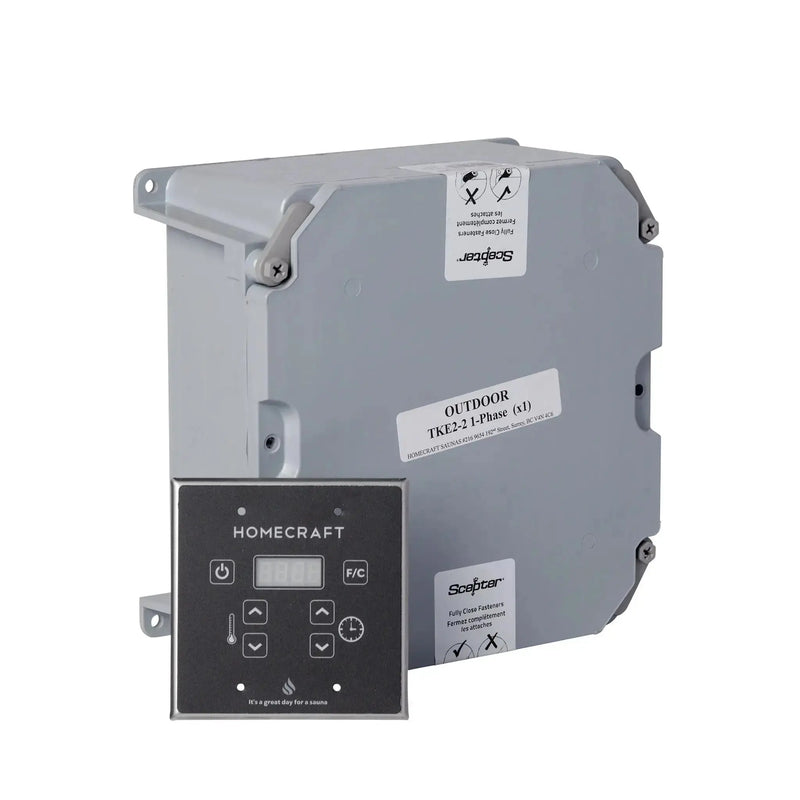

- TKE2-2 Wi-Fi Control – Outdoor Setup: Includes Homecraft's low-voltage 24V Class 2 digital control system with an outdoor-rated enclosure ideal for outdoor sauna installations.
- Wi-Fi Integration: The included Wi-Fi system provides convenient remote sauna operation from a compatible smartphone or tablet.
- Simple Digital Touchpad: Power the sauna ON/OFF, set session times up to 60 minutes, and adjust the temperature up to 90°C (194°F) from the included touchpad.
- Made in Canada: Proudly manufactured in Canada with a focus on durable construction, dependable performance, and traditional sauna quality.
- ETL Listed: ETL listed and designed to comply with applicable CSA and UL safety standards for North American sauna installations.
Transform Your Sauna Experience
The Homecraft Revive Slim 6 kW Bundle with WiFi is ideal for sauna owners who want generous steam production without sacrificing valuable interior space. Its narrow profile and substantial stone capacity provide an excellent balance of compact installation, heat retention, and enjoyable löyly, while the included heat shield offers additional flexibility in tighter sauna layouts. Combined with the TKE2-2 Wi-Fi Outdoor Control Setup, the Revive Slim delivers traditional sauna performance with convenient modern control.
Specifications
| Heater Type | Electric |
| Power Output | 6 kW (6,000 W) |
| Voltage / Phase | 240V / Single Phase |
| Amperage | 25A |
| Sauna Room Size | 7.1–9.4 m³ (250–331 cu. ft.) |
| Stone Capacity | Up to 45 kg (100 lbs) |
| Height | 914 mm (36 in) |
| Width | 343 mm (13.5 in) |
| Depth | 203 mm (8 in) |
| Mounting | Floor-standing; secured using manufacturer-supplied safety brackets |
| Minimum Clearance to Combustibles | 89 mm (3.5 in) standard; as little as 25 mm (1 in) with properly installed Homecraft Heat Shield |
| Minimum Clearance to Combustible Ceiling | 1,067 mm (42 in) above heater |
| Circuit Breaker | 40A |
| Recommended Wire | #8 copper wire, 90°C rated |
| Construction | 100% stainless steel |
| Sauna Control | Homecraft TKE2-2 Wi-Fi Control – Outdoor Setup; 24V Class 2 digital control; maximum 60-minute session time; temperature up to 90°C (194°F) |
| Included Accessories | Homecraft Heat Shield ($150 value), 4 Boxes of BCR Rounded Sauna Rocks, Homecraft TKE2-2 Wi-Fi Control – Outdoor Setup with outdoor-rated enclosure |
| Country of Manufacture | Canada |
| Certification | ETL Listed; compliant with applicable CSA and UL standards |
| Downloads | Revive Heater Installation Manual (PDF) TKE2-2 Keypad & Outdoor Control Installation Manual (PDF) TKE2-2 Wi-Fi App Instructions (PDF) |
