Product Description

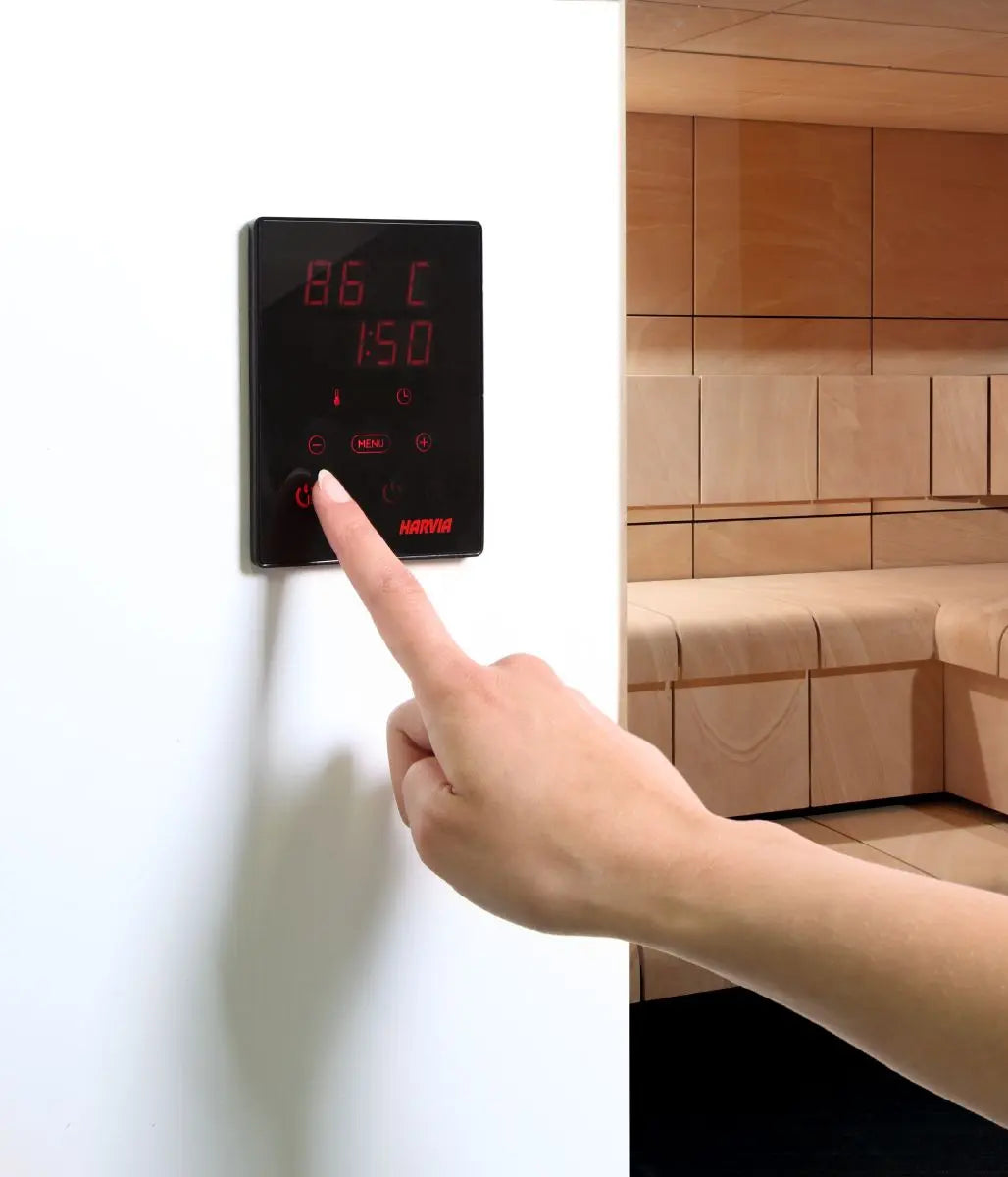

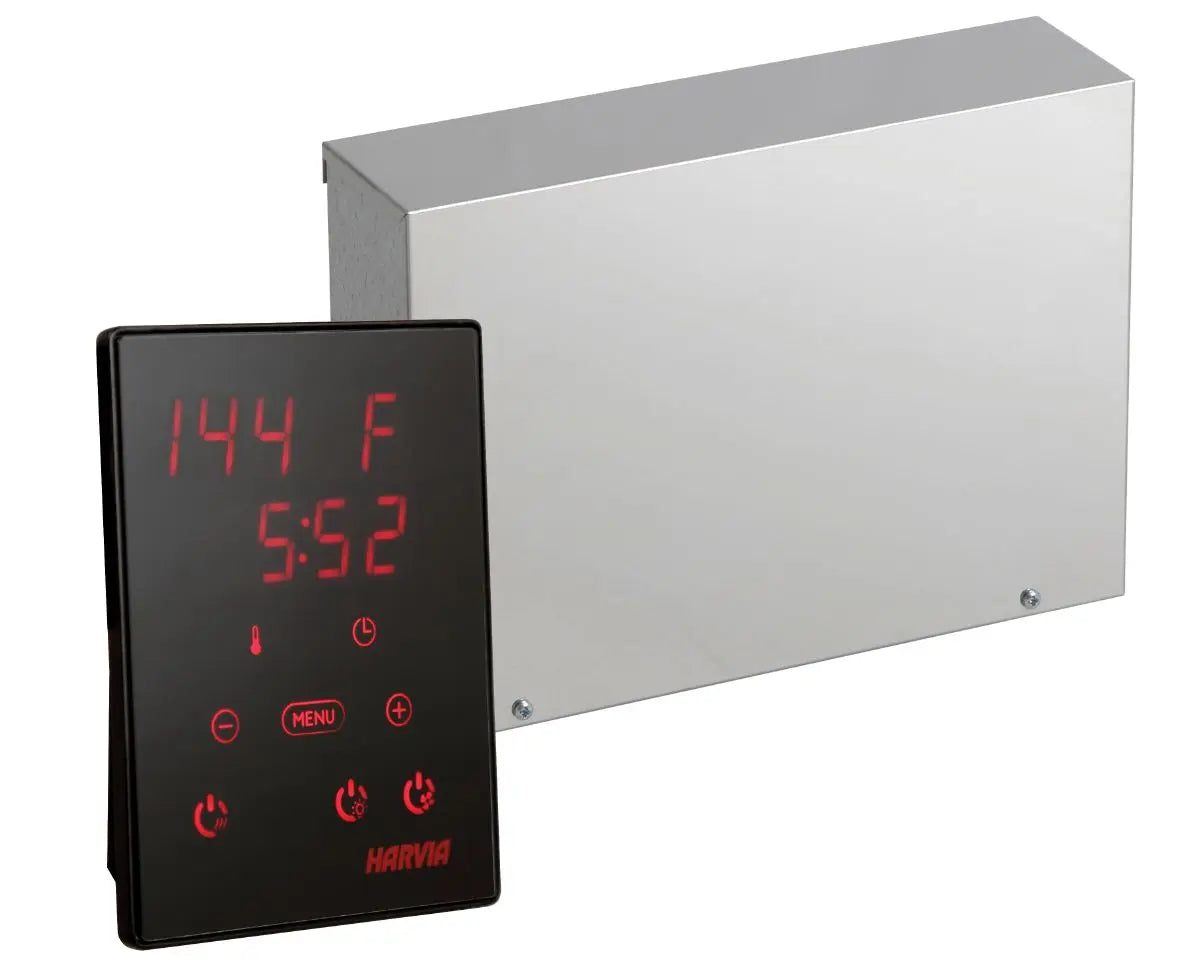

Harvia Xenio is a control unit with a touch control panel. Xenio provides a modern and subtly stylish user interface for controlling the heart of the sauna, the heater. The stylishly small yet clear touch control panel is easy to install where you want it: in the sauna, the shower room, the dressing room, or even the living room. The control panel enables you to see with just one look when your sauna is at the right temperature for you. - For controlling electric heater - temperature adjustment range 104–194 ºF (40–90 °C) - operating time adjustment range: family sauna 1–6 h, commercial sauna 1–12 h - pre-setting time adjustment range 0–12 h - lighting and fan control - maximum output 11 kW - power unit supply voltage 400 V 3N~
For controlling electric sauna heater (Cilindro )
Temperature adjustment range 40–90 ˚C
Operating time adjustment range: family sauna 1 h, commercial sauna 1–12 h
Pre-setting time adjustment range 0–8 h
Lighting and fan control
Maximum output 11 kW (can be extended to 22 kW with a Harvia Power Extension LTY45)
Power unit supply voltage 240 1N~ / 208 V 3N~
| Model CX30 | Control panel | Power unit |
| Dimensions width in (mm) | 3 3/4 (94) | 10 5/8 (270) |
| Dimensions height in (mm) | 4 1/2 (113) | 8 (201) |
| Dimensions depth in (mm) | 1 1/8 (28) | 3 1/8 (80) |
| Weight lbs (kg) | 1/4 (0,120) | 3 1/4 (1,5) |
| Temperature adjustment range min-max °C (°F) | 40–90 (104-194) | |
| On-time adjustment range h | family sauna 1, commercial sauna 1–12 |
|
| Pre-setting time adjustment range h | 0–8 | |
| Max. load kW | 11 |
